| Length | 30W | 163.7mm 100W | 232mm |
|---|---|
| Width | 30W | 54mm 100W | 78mm |
| Height | 30W | 20mm 100W | 25.1 |
| Wattage | 30W | 100W |
| Input Voltage | 100V - 240V AC |
| Output Voltage | 12V DC | 24V DC |
| Max Wattage | 30W | 24W 100W | 80W |
| Dimmable | Yes, DALI or Push Dim |
| Dimming Range | 1 - 100% |
| Protection Class | 1 (Earth Required) |
| Material | 30W | Plastic 100W | Aluminium |
| IP Rating | 30W | IP20 100W | IP66 |
| Application | 30W | Interior 100W | Exterior / Interior |

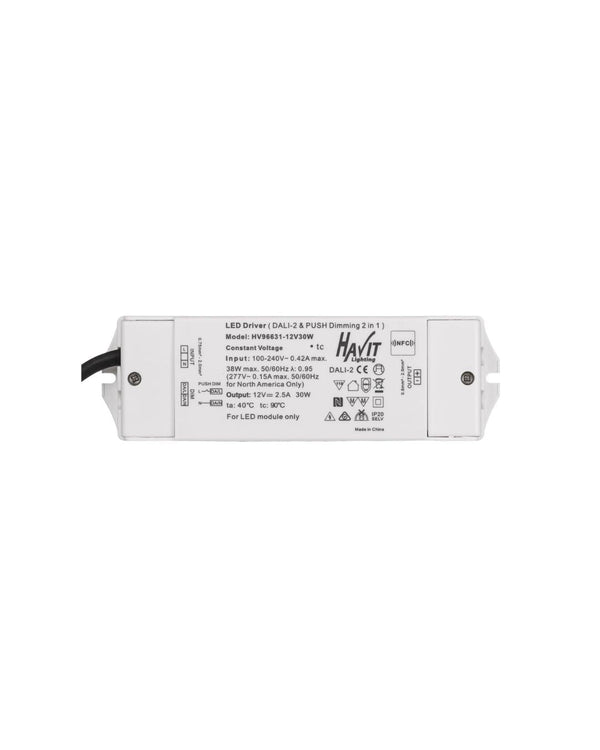

2 in 1 Dimming Driver | DALI | Push Dimming
SKU: HV192-1
PRICE: $109.00
- OUTPUT VOLTAGE:
- 12V DC
- 24V DC
- WATTAGE:
- 30W
- 100W
This 2-in-1 dimmable LED driver range offers a choice of IP20 and IP66 models, each designed to deliver reliable performance with both DALI-2 and push-dim control. Adjustable settings can be configured through the NFC app, allowing quick, power-free programming. A smooth 5–100% dimming range, high power factor of 0.95 and flicker-free operation support consistent and stable illumination across various applications.
The IP20 option suits indoor use with a 30W output and a recommended load range of 3–24W. The IP66 version is built for more demanding environments, offering a 100W output with a recommended load range of 10–80W. Both models operate on 240V AC input and include a flex and plug for straightforward installation.
Specifications:
| Warranty | 3 Years |
|---|
